Advanced Version Repository details

This part of the tutorial will briefly outline where to find the major differences of the Advanced Version. Compared to the Basic Version, the Advanced Version requires you to enable a few additional settings in the values.yaml file of our Umbrella Chart, and will also make use of additional code snippets based on additional Service Instances and Service Bindings like Cloud Identity Service.

• Advanced Version Repository details
  • Umbrella Chart Updates
    • Central User Management
    • SAP API Management Integration
  • Additional Code Snippets

Umbrella Chart Updates

In the Umbrella Chart, a you need to toggle the creation of additional services and bindings which are not required in the Basic Version. The respective steps will also be part of the upcoming chapters, still we will list the required values.yaml changes in this overview.

Central User Management

Enabling the following configuration will create a new Cloud Identity Service Instance of type application upon helm install or helm upgrade. Please make sure to read the respective chapter before enabling this scenario!

Important

The Integration with SAP Identity Authentication requires both additional entitlements in your SAP BTP Subaccount as well as a SAP Identity Authentication tenant.

# SAP Cloud Identity Service Instance
# Provides an SAP IAS integration for central user management
identity:
  enabled: true # Enable if an SAP IAS instance is configured as Trusted Identity Provider
  serviceOfferingName: identity
  servicePlanName: application
    ...

Enabling the following configuration will create a Service Binding between your Backend Service and the above Cloud Identity Service Instance upon helm install or helm upgrade. In this case a special binding type (X.509) is required, while for all other Service Bindings we are using the standard Client Credential binding. Please make sure to read the respective chapter before you enable this scenario!

Important

The Integration with SAP Identity Authentication requires both additional entitlements in your SAP BTP Subaccount as well as a SAP Identity Authentication tenant.

srv:
  port: 8080
  bindings:
    xsuaa:
      serviceInstanceName: xsuaa
    ...
    identity:
      # Only enable if Cloud Identity Service instance is enabled in Umbrella Chart
      enabled: true
      serviceInstanceName: identity
      # SAP IAS binding requires X.509 certificate based credentials
      parameters:
        credential-type: X509_GENERATED
  image:
    ...

SAP API Management Integration

By enabling and updating the following configuration, your application is ready for the integration with SAP API Management. Please make sure to read the respective chapter before you enable this scenario!

Important

The Integration with SAP API Management requires additional entitlements in your SAP BTP Subaccount.

# SaaS API Workload
api:
  ...
  # Settings for SAP API Management integration
  apim:
    # Only enable if SAP API Management instance is configured
    enabled: true
    # SAP API Management runtime host w/o "https://" or port
    host: sap-demo.prod.apimanagement.us20.hana.ondemand.com
    # Port of SAP API Management runtime host
    port: 443
    # Path of API Proxy in SAP API Management
    path: susaas-api
    # Provide details of the API XSUAA Service Instance
    # Those details can be found in the respective Kyma Secret
    # The Secret is created for the xsuaa-apim serviceKey
    xsuaa:
      # Provide the XSUAA tenant host without https://
      # e.g., sap-demo.authentication.us20.hana.ondemand.com
      host: sap-demo.authentication.us20.hana.ondemand.com
      # Provide the xsappname of your API XSUAA Service Instance
      # Add the prefix "sb-" to the xsappname like, sb-susaas-api-default
      sub: sb-susaas-api-default
  resources:
    ...

Additional Code Snippets

The additional code snippets serving the Advanced Version features of this tutorial, can be found in the User Management utilities of our Backend Service. Visit the respective utils file (srv/utils/user-management.js) to find the code snippets described.

Hint

Compared to the Cloud Foundry version of this tutorial, we decided to merge the Basic and Advanced Version into the same codeline, by simply checking the availability of the SAP Cloud Identity Service Binding.

Code Sample	Description

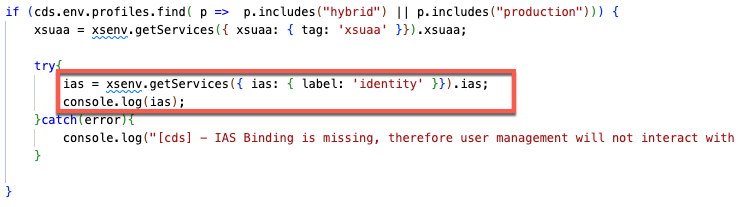

	Read Cloud Identity service binding details using xsenv.

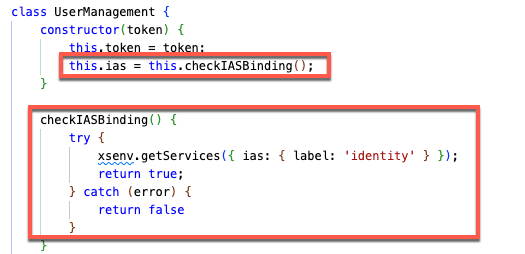

	Methods for checking the Cloud Identity service binding.

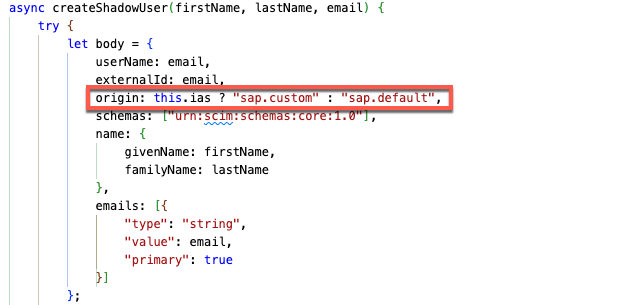

	Setting the user origin based on SAP IAS usage.

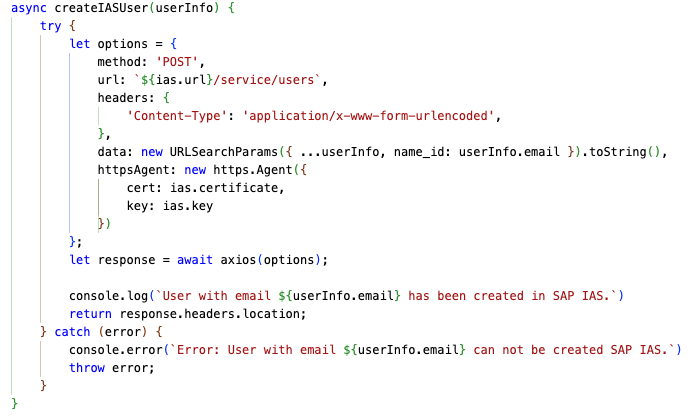

	Methods for creating and deleting users in SAP IAS.
